Electrical Panel Inspection Checklist — Middle Edition

Multi-panel inspection for routine maintenance teams and compliance engineers. 7 working sheets covering a full panel register, 50-item visual inspection, complete measurements, protection device verification, defect tracking and sign-off report.

What You Get — 7 Sheets

• 01 - Instructions — Setup guide and sheet descriptions
• 02 - Panel Register — Register up to 10 panels with voltage, rating, IP, last inspection

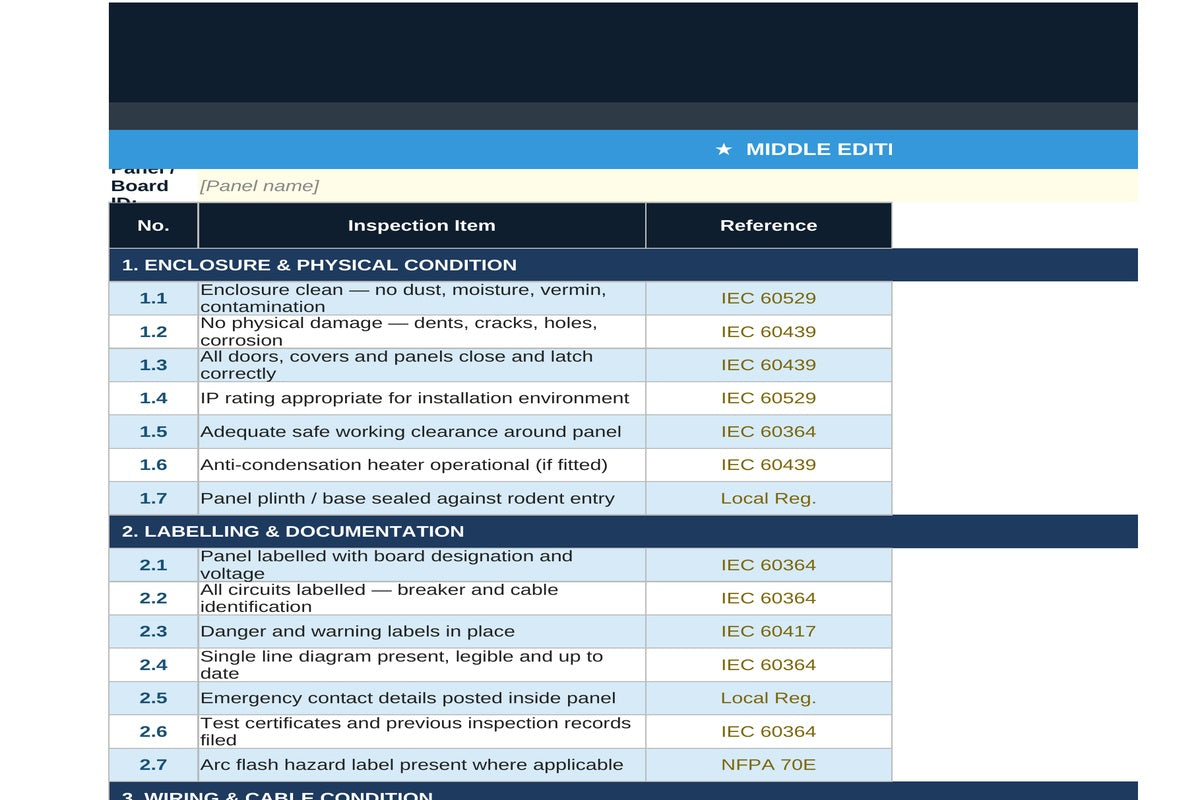

• 03 - Visual Inspection — 50 items across 6 categories with Pass/Fail/N/A dropdowns
• 04 - Measurements — Full voltage, current, IR, earth resistance and loop impedance record
• 05 - Protection Devices — Circuit breaker log — ratings, settings, trip test and RCD results
• 06 - Defect Register — 50-row defect tracker with severity, WO number and close-out
• 07 - Report Summary — Panel-by-panel results, overall outcome and inspector sign-off

Standards

IEC 60364 / BS7671 — suitable for industrial and commercial LV installations.

Format: Microsoft Excel (.xlsx) — instant download after purchase

Single-user non-transferable licence. © 2026 Build Smart Digital.
